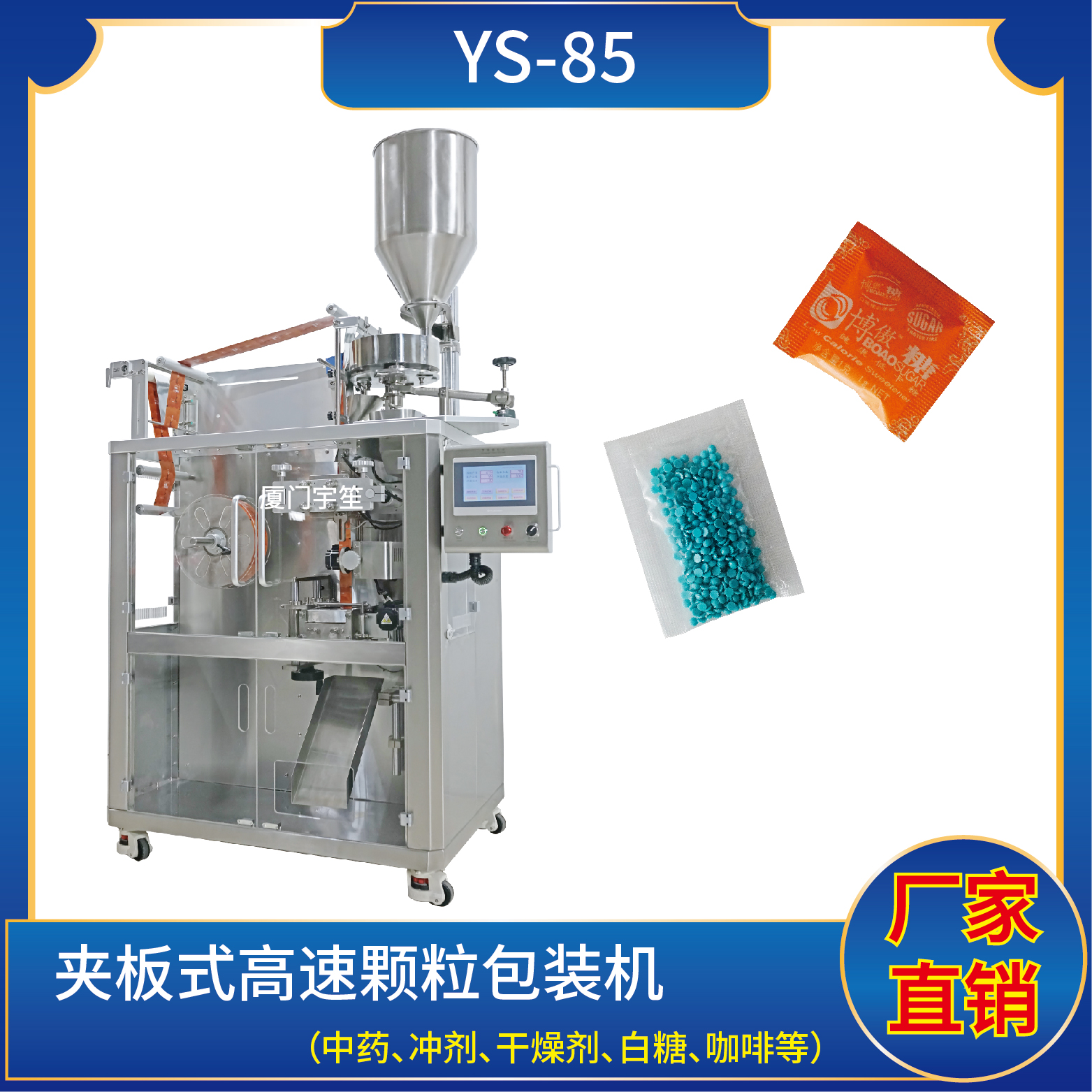

YS-85夾板式三邊封高速顆粒包裝機
YS-W85AK 高速顆粒包裝機
1、適用于各種調味料，中藥顆粒、干燥劑，沖劑等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, TCM granules, desiccants, and instant granules.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.

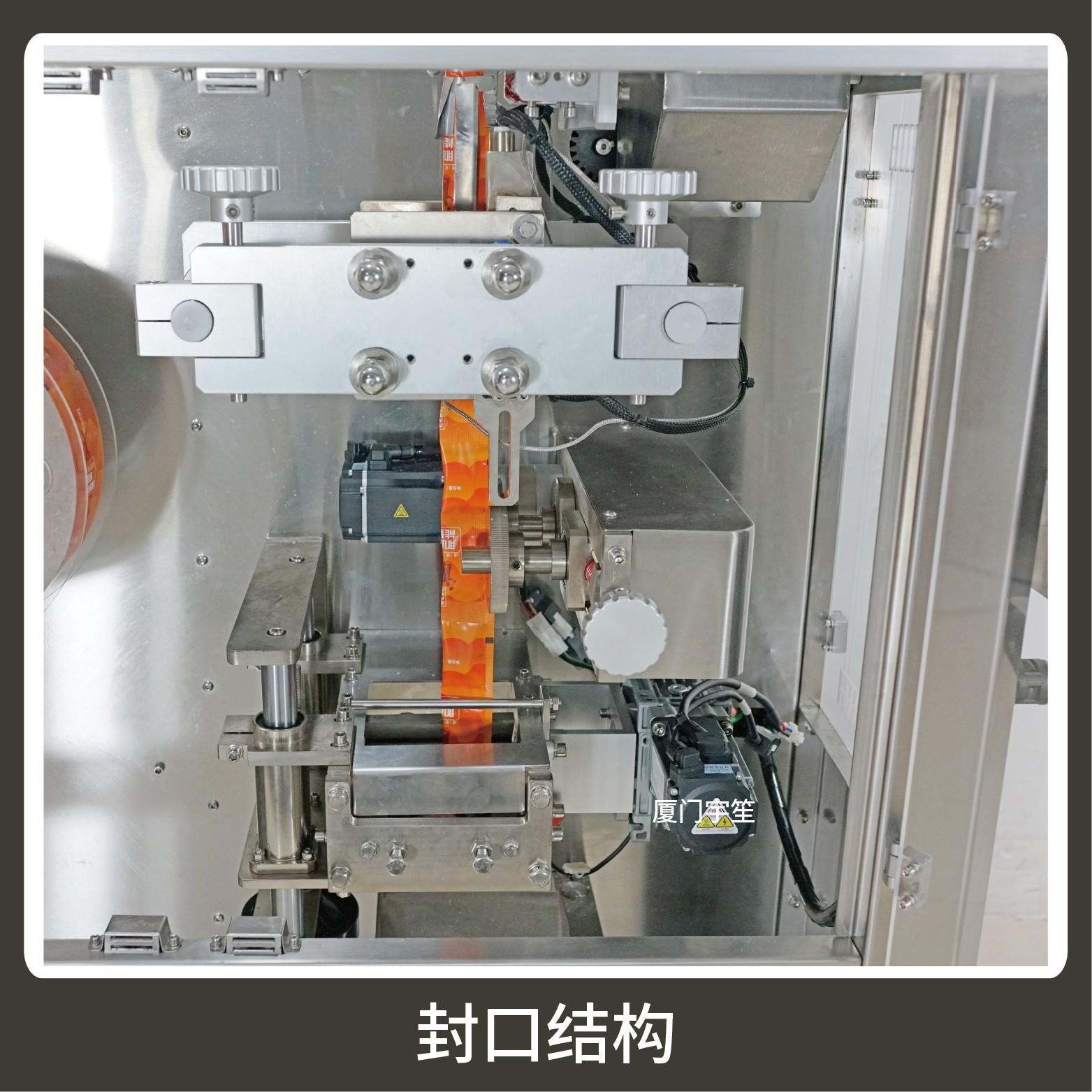

封口方式 Sealing Type
背封封口 三邊封口
Back sealing Three sides sealing
技術參數
Technical Parameters
計量范圍：1 - 40 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 115 mm
Bag Size 寬( W ) : 30 - 95 mm
包裝速度：40-130 bags/min
Packing Speed
外型尺寸：1364*853*2081 mm
Dimension ( L * W * H )
整機重量：300 kg
Weight
總 功 率：220V / 50Hz / 3kw
Total Power
1、適用于各種調味料，中藥顆粒、干燥劑，沖劑等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, TCM granules, desiccants, and instant granules.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film.
計量范圍：1 - 40 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 115 mm
Bag Size 寬( W ) : 30 - 95 mm
包裝速度：40-130 bags/min
Packing Speed
外型尺寸：1364*853*2081 mm
Dimension ( L * W * H )
整機重量：300 kg
Weight
總 功 率：220V / 50Hz / 3kw
Total Power
適用于各種調味料，中藥顆粒、干燥劑，沖劑等小顆粒狀物品的計量包裝。
Suitable for the metering and packaging of small granular items such as various seasonings, TCM granules, desiccants, and instant granules.
